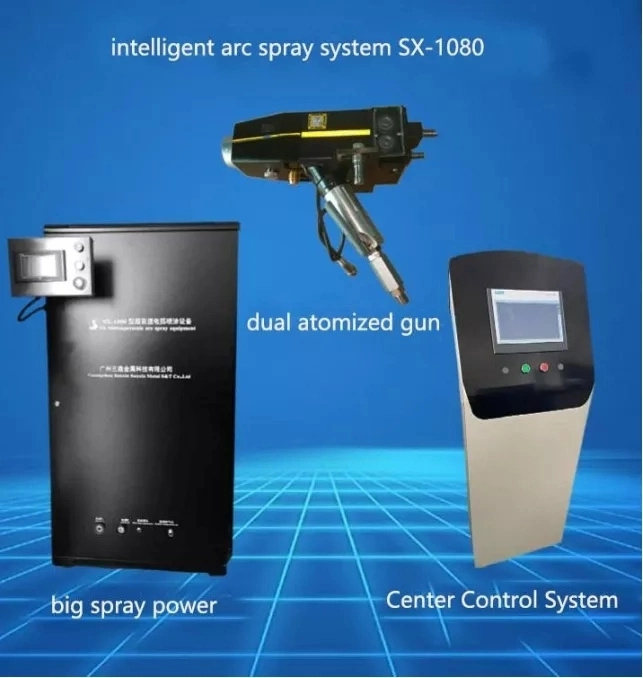

The SX-1080 is an economical yet intelligent wire arc spray system. A central Siemens PLC and touch screen control voltage, current, air pressure and wire feed in closed loop, storing recipes and logging operating parameters. The dual-atomizing arc gun supports different nozzle and air-cap combinations for a wide range of spray patterns and coating finishes.
Key Specifications
- Power: 16 kW (35 kW / 1000 A high-power option available)
- Wire diameter: 1.6 – 3.0 mm (up to 3.2 mm with high-power supply)
- Typical spray rate: 8 – 30 kg/h depending on wire material
- Spray gun weight: 2.65 kg
- Control: Siemens touch screen + PLC, automatic ignition/shutdown, fault alarm
- Wire feed: synchronized drive, single sealed motor, feed distance up to 20 m
Applications
- Bridge and steel-structure zinc/aluminum anti-corrosion
- Wind-power flange and tower coating
- Water gates, ships, tanks and pipeline exteriors
- Copper, zinc and aluminum coatings for general industry
