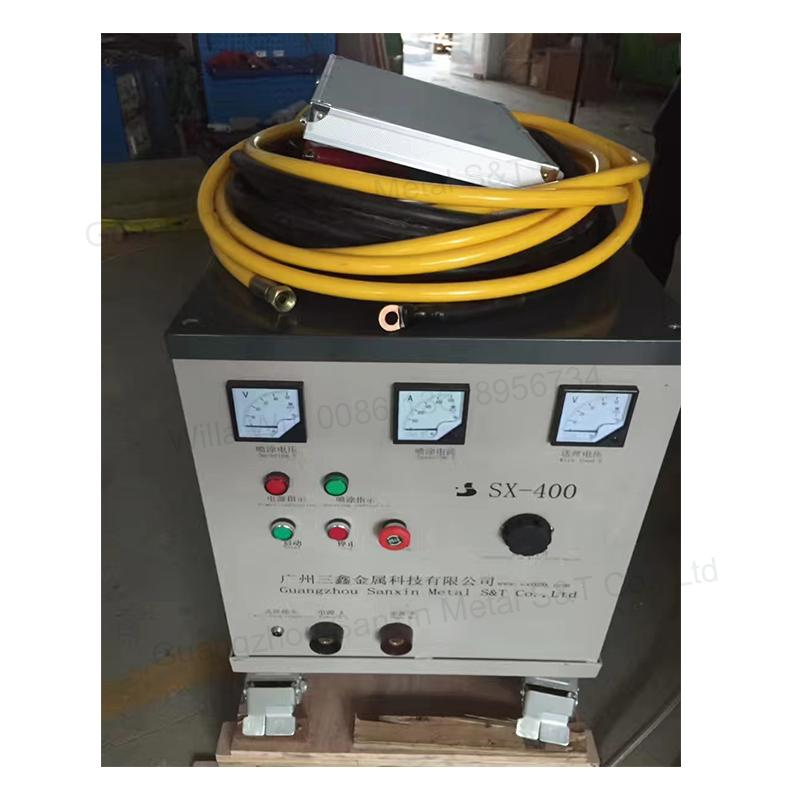

The SX-400 is a compact, pull-type supersonic arc spray unit designed for low-cost anti-corrosion coatings and local repair work. It melts zinc, aluminum or alloy wires with an electric arc, atomizes the molten metal with high-velocity compressed air, and deposits the particles onto a prepared surface to form a dense, well-bonded coating.
Key Specifications
- Power: 15 kW (16 kW output option)
- Wire diameter: 1.2 – 3.0 mm
- Air consumption: ≥ 1.85 m³/min at >0.5 MPa
- Spray gun weight: 2.65 kg
- Particle flight speed: >420 m/s
- Axial airflow speed: ~600 m/s
- Deposition efficiency: >75%
- Input: 380 V / 50 Hz three-phase
Applications
- Anti-corrosion zinc/aluminum coatings for steel towers, bridges, water gates and ships
- Surface repair of paper-making dryer cylinders, printing rollers and crankshafts
- Electrode coatings for capacitor and electric-porcelain industries
- Wear and corrosion protection for boiler tubes, fans and casings
