Fan and Blower Impeller Wear-Resistant Coating for Dust-Laden Air

Application fields:

Induced and forced draft fans in boilers and kilns, cement and lime dust handling, biomass and waste-to-energy plants, steel plant dust extraction, and chemical process blowers.

Technical principles and processes:

Blades and the inlet cone are grit blasted and, where erosion has thinned the profile, rebuilt before coating. A tungsten carbide or alumina-titania ceramic layer is applied by HVOF or atmospheric plasma spray depending on the gas temperature and dust chemistry. The impeller is then balanced to the original grade.

Coating performance:

Erosion resistance improved 3-6 times over mild steel blades
Coating thickness 0.15-0.40 mm on blade faces and leading edges
Withstands continuous service up to roughly 540 degrees C with ceramic
Impeller balanced after coating to control vibration
Extended intervals between blade replacement and rebalancing

风机叶轮耐磨涂层加工：针对含尘、腐蚀性烟气工况，对叶片与进气锥做碳化钨或陶瓷涂层，减缓冲刷磨损，延长风机检修周期。

Related Coating Services

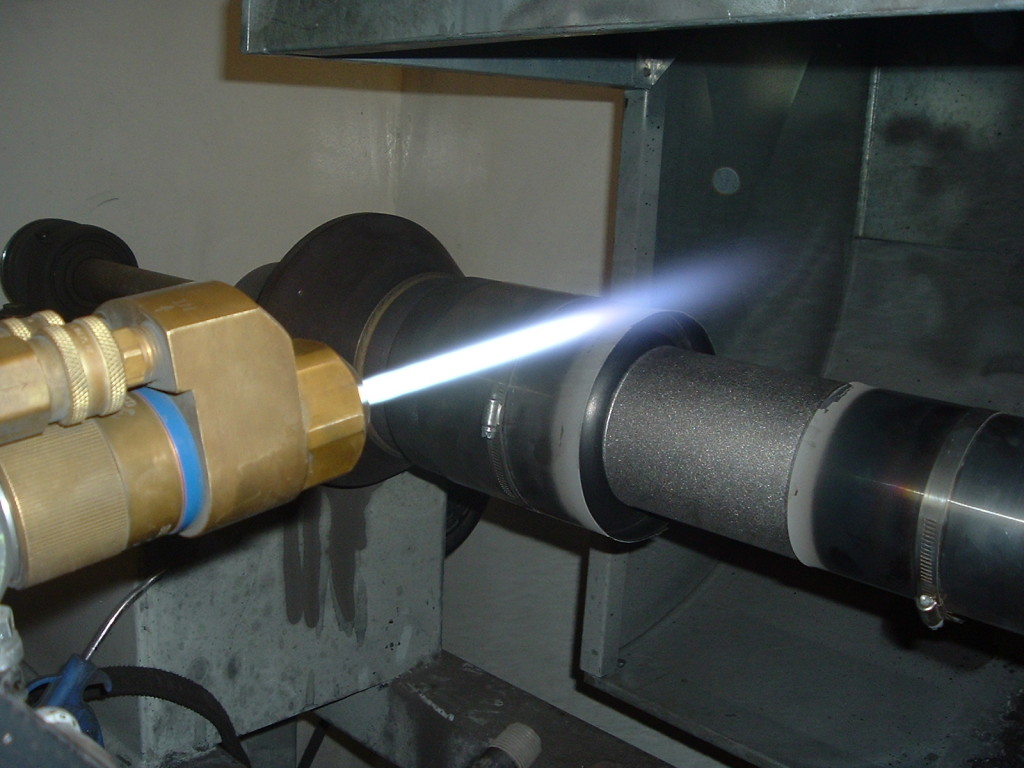

HVOF Tungsten Carbide Coating for Pump Shafts and Piston Rods

Pump shafts, piston rods and plungers carry seals and packings against a running surface, so wear there leads directly to leakage. A HVOF tungsten carbide coating gives that surface a dense, hard and corrosion-resistant layer that keeps the seal interface in good condition.

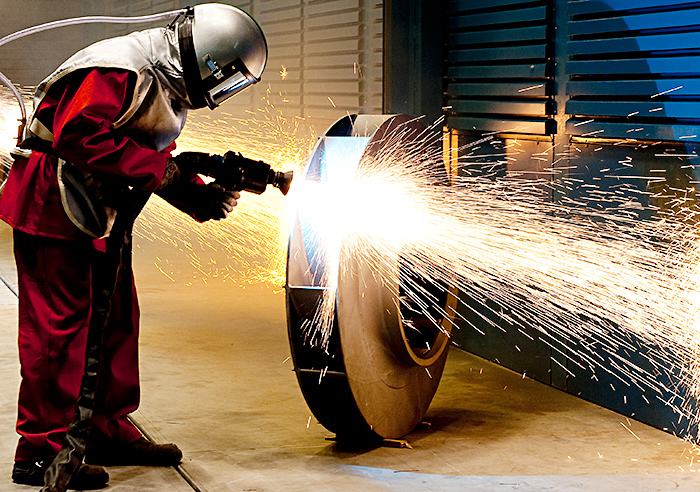

Arc Spray Coating for Large Wheels, Discs and Rotating Parts

Large wheels, discs, sheaves and rolls are expensive to replace and often impossible to source quickly. Arc spraying rebuilds their worn working surfaces and can add a wear or corrosion resistant layer at the same time, typically at a fraction of replacement cost.

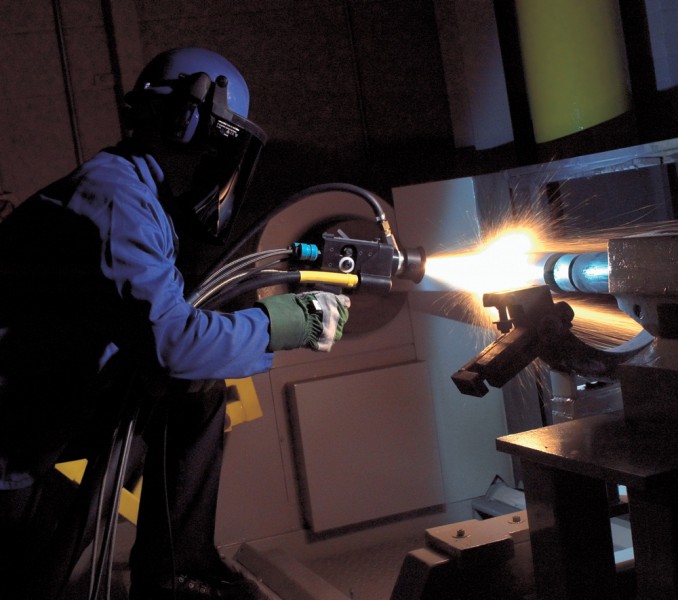

Anti-Corrosion Surface Treatment for Steel Structures and Steelwork

For structural steel that has to survive decades of humid, coastal or chemical exposure, a thermally sprayed metal coating outperforms paint systems on its own. The sprayed layer protects the steel by sacrificial action, and the paint topcoat then only has to protect the coating itself.
