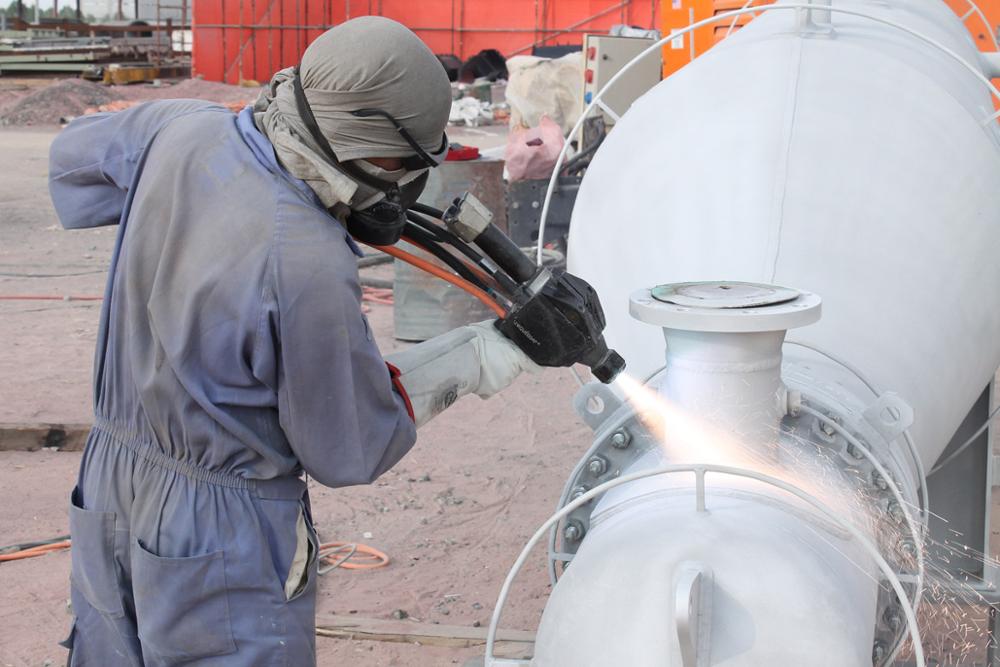

Zinc-Aluminum Arc Spray Anti-Corrosion Coating for Tanks and Vessels

Application fields:

Storage tanks and pressure vessels, chemical and water tanks, offshore and port steelwork, steel bridges and lock gates, pipelines, and structural steel in humid, coastal or chemical environments.

Technical principles and processes:

The steel surface is prepared to a high standard by dry abrasive blasting to reach the required cleanliness and roughness, because bond quality depends on it. Zinc-aluminum (typically 85/15) wire is then arc sprayed in overlapping passes to a specified thickness. A sealer or topcoat is normally applied to extend service life.

Coating performance:

Sacrificial cathodic protection stops rust creep under the coating
Typical thickness 100-300 microns, applied in one or more passes
Bond strength suitable for immersion and atmospheric service
Service life of 15 years and beyond in moderate environments
Applicable on site or in the workshop for large fabrications

储罐与容器锌铝电弧喷涂防腐：双丝电弧喷涂锌铝涂层，具备牺牲阳极保护作用，适用于储罐、容器、海工与化工环境钢结构的长效防腐。
